产品名称：BOOIL数据保险柜 产品编号：61923412816 产品类别：防潮箱、防火柜、防磁柜系列 产品备注：安防设备 规 格：1400*700*635 产品说明： 原装进口BOOIL数据保险柜（DATA SAFES）资料如下： 主要功能： 防火、防磁场、防潮、防盗、防尘 防火等级：UL/GOST/SINTEF/KS：60分钟、90分钟、120分钟 H高*W宽*D深
| 型号Model No. | 外部尺寸 Outside | 内部尺寸 Inside | 重量 Weight | 容积 Capacity | 隔板 Shelf | | BDS-D1400/T1400 | 1400*700*635 | 997*382*321 | 407Kg | 122.25L | 5pcs | | BDS-D1600/T1600 | 1600*800*635 | 1195*480*321 | 537Kg | 184.13L | 7pcs | | BDS-D1700/T1700 | 1700*800*635 | 1295*480*321 | 567Kg | 199.53L | 7pcs |
Note: D=KEY LOCK(防火钥匙锁)+COMBINATION LOCK（机械密码锁） T=KEY LOCK(防火钥匙锁)+DIGITAL LOCK（电子密码锁） K=KEY LOCK(防火钥匙锁)+ KEY LOCK(防火钥匙锁)
BOOIL防火柜产品通过以下国际认证： *UL/USA: 1 Hour Fire-Resistance Rating. *GOST/RUSSIA: 2 Hour Fire-Resistance Rating. *SINTEF/NORWAY: BS-1200/2 Hours, BS-670/90 minutes. *KS/KOREA:BS-750/2 Hours Fire-Resistance Rating.
HxWxD(mm) | Model No. | Outside | Inside | Weight | Capacity | Shelf | | BDS-D320 /T320 | 320x413x328 | 128x233x119 | 40kg/ 88Lbs | 3.55L |
| | BDS-D340 /T340 | 350x435x370 | 134x232x130 | 44kg/ 97Lbs | 4.04L |

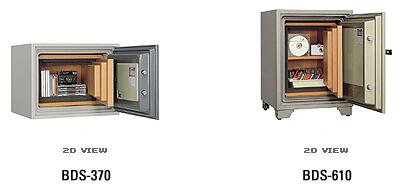

| | BDS-D370 /T370 | 360x483x400 | 112x252x194 | 54kg/ 119Lbs | 5.48L |
| | BDS-D510 /T510 | 510x343x400 | 252x112x194 | 59kg/ 130Lbs | 5.48L | 1pc | | BDS-D610 /T610 | 610x450x460 | 316x216x200 | 85kg/ 205Lbs | 13.65L | 1pc | | BDS-D670 /T670 | 670x500x470 | 358x250x200 | 114kg/ 251Lbs | 17.90L | 1pc | | BDS-D750 /T750 | 750x530x510 | 428x282x241 | 152kg/ 334Lbs | 29.09L | 2pcs | | BDS-D880 /T880 | 880x590x510 | 554x334x241 | 195kg/ 429Lbs | 44.59L | 2pcs | | BDS-D1000 /T1000 | 1000x600x535 | 664x334x244 | 228kg/ 502Lbs | 54.11L | 3pcs | | BDS-D1200 /T1200 | 1200x700x635 | 833x418x344 | 299kg/ 658Lbs | 119.78L | 4pcs | | BDS-D1400 /T1400 | 1400x700x635 | 1033x418x344 | 370kg/ 814Lbs | 148.54L | 5pcs | | BDS-D1600 /T1600 | 1600x800x635 | 1231x516x344 | 472kg/ 1038Lbs | 218.51L | 7pcs | | BDS-D1700 /T1700 | 1700x800x635 | 1331x516x344 | 536kg/1179Lbs | 236.26L | 7pcs |
HxWxD(inch) | Model No. | Outside | Inside | | BDS-D320 /T320 | 12 3/5 x 16 1/4 x 13 | 5 x 9 1/6 x 4 2/3 | | BDS-D340 /T340 | 13 7/9 x 17 1/8 x 14 4/7 | 5 2/7 x 9 1/7 x 5 1/8 | | BDS-D370 /T370 | 14 1/6 x 19 x 15 3/4 | 4 2/5 x 10 x 7 2/3 | | BDS-D510 /T510 | 19 2/3 x 13 1/2 x 15 3/4 | 10 x 4 2/5 x 7 2/3 | | BDS-D610 /T610 | 24 x 17 5/7 x 18 1/9 | 12 4/9 x 8 1/2 x 7 7/8 | | BDS-D670 /T670 | 26 3/8 x 19 2/3 x 18 1/2 | 14 x 9 5/6 x 7 7/8 | | BDS-D750 /T750 | 29 1/2 x 20 6/7 x 20 | 16 6/7 x 11 1/9 x 9 1/2 | | BDS-D880 /T880 | 34 2/3 x 23 2/9 x 20 | 21 4/5 x 13 1/7 x 9 1/2 | | BDS-D1000 /T1000 | 39 3/8 x 23 5/8 x 21 | 26 1/7 x 13 1/7 x 9 3/5 | | BDS-D1200 /T1200 | 47 1/4 x 27 5/9 x 25 | 32 4/5 x 16 1/2 x 13 1/2 | | BDS-D1400 /T1400 | 55 1/8 x 27 5/9 x 25 | 40 2/3 x 16 1/2 x 13 1/2 | | BDS-D1600 /T1600 | 63 x 31 1/2 x 25 | 48 1/2 x 20 1/3 x 13 1/2 | | BDS-D1700 /T1700 | 67 x 31 1/2 x 25 | 52 2/5 x 20 1/3 x 13 1/2 |
|
